How a Motorized Blind Motor Actually Works in a Dubai Apartment

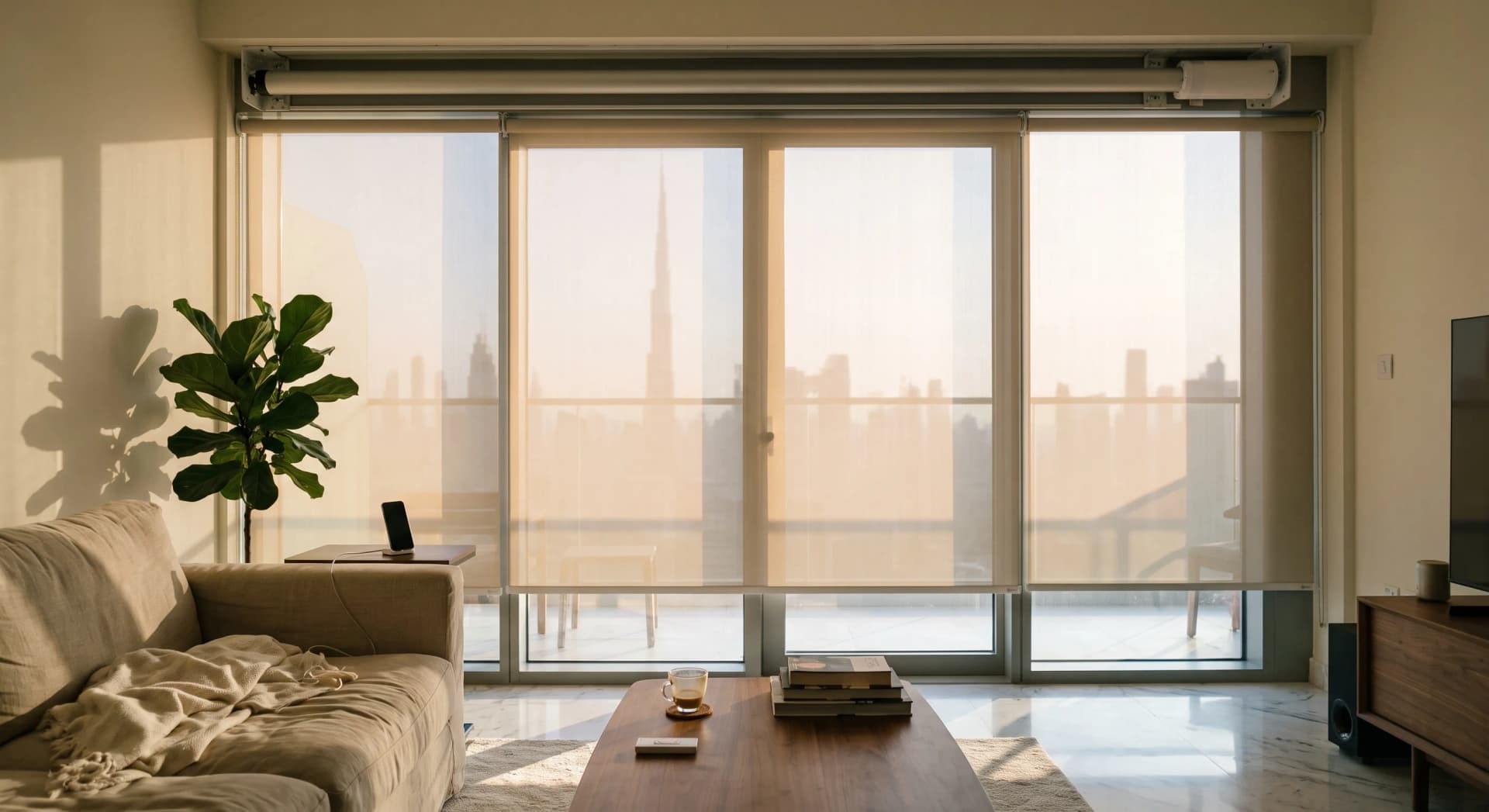

Your motorized blind glides down and stops dead level with the windowsill. Every time, to the millimetre. You have never once wondered how it knows where the sill is, because it just works, which is the whole point.

Inside that roller tube sits a motor, a set of gears, and a small system that remembers exactly where to stop. That last part is why the blind lands in the same spot on the thousandth run as it did on the first. The rest of this is what those parts do, and which ones are worth paying for in a Dubai apartment.

TL;DR: A motorized roller blind is driven by a tubular motor, a sealed cylinder of motor, gearbox and limit system that slides inside the roller tube. The gearbox trades speed for the torque needed to lift fabric, and the limit system is what makes the blind stop at the same spot every time. Renters can skip the tube entirely with a retrofit motor that grips the existing bead chain, from around AED 300. The one Dubai catch is heat: a battery motor should not charge against hot glass.

What sits inside the roller tube

A motorized roller blind hides its whole mechanism inside the aluminium tube the fabric wraps around. A tubular motor is a single sealed cylinder that slides into that tube and carries the parts that do the work: the motor, a set of reduction gears, a control module, and a limit system that tracks position (Jiecang, 2026).

The motor turns the tube, and it holds the blind steady when the power cuts, so a half-open blind does not slowly unroll under its own weight. The reduction gears sit between the motor and the tube to convert fast, weak spin into slow, strong pull. The control module takes the command from your remote or hub, and the limit system counts how far the tube has turned so the motor knows when to stop.

That is the entire device. No part of it is exotic. What separates a good one from a cheap one is how well those four parts are made, and the limit system is where most of the difference shows up.

The limit system is the part that decides everything

The reason your blind stops flush with the sill every time is the limit system, and there are two kinds. Which one you have decides whether the blind still lands correctly a year from now.

A mechanical limit uses a small geared counter with cams you set with an adjustment tool, one cam for the top position and one for the bottom (Walter Motor, 2026). It is cheap and reliable, but the cams can drift slightly over thousands of cycles, which tends to show up as a blind that slowly starts stopping a few centimetres short and needs a reset.

An electronic limit stores the top and bottom positions in memory and compares every movement against them, so it holds its calibration and stops at the same programmed point every time (Walter Motor, 2026). In our experience fitting blinds across Dubai apartments, the electronic-limit motors are the ones clients forget they own, because they never drift and never need touching.

Torque is why blinds use gears, and why a mismatched motor fails early

The gearbox exists for one reason: fabric is heavier to lift than a small motor can manage at speed, so the gears trade rpm for pulling power, measured in newton-metres. Match the torque to the shade and the motor barely works. Mismatch it and the motor labours on every close.

A Somfy Sonesse 30 tubular motor is rated at 2 newton-metres, which suits a normal bedroom or bathroom roller (Alan Richard Textiles, 2026). A wide living-room shade over floor-to-ceiling glass needs far more, which is why a heavier motor like the Somfy Sonesse 40 climbs to 9 newton-metres (Alan Richard Textiles, 2026).

Put a 2 newton-metre motor on a three-metre shade and it overheats, wears its gears, and dies inside a year or two. This is the single most common reason a motorized blind fails, and it is a sizing mistake, not a brand problem.

The retrofit motor that grips your existing chain

If you rent, you do not need to touch the tube at all. A retrofit motor clamps onto the bead chain that already hangs off your blind and pulls it, the same way your hand does, so the blind itself stays exactly as it is.

The Aqara Roller Shade Driver E1 screws to the wall beside the blind, takes the existing beaded cord through an adapter, and fits chains from 3 to 6 millimetres thick in either plastic or metal (Aqara, 2026). It runs on Zigbee, holds roughly two months on a charge, and tops up over USB-C. The SwitchBot version does the same job with a set of gear adapters for different chain loops (iSupra Design, 2026).

The trade-off is honest: a chain-driven retrofit is a little slower and a little more visible than a motor hidden inside the tube. What you get back is a smart blind with nothing drilled into the window, and you take it with you when you move. For a renter in Business Bay or Dubai Marina, that is usually the right call.

Why a good motor is quiet and a cheap one announces itself

The noise a blind makes comes largely from the gearbox and from how the motor starts and stops. A quality tubular motor uses smoother planetary gears and eases its speed up and down instead of snapping, which keeps the movement low and quiet.

The numbers back this up. A Somfy Sonesse 30 runs at around 47 decibels (Alan Richard Textiles, 2026). For reference, a normal conversation sits near 60. So a well-made blind motor is quieter than two people talking in the room.

A cheap motor skips the ramp and uses rougher gears, so it clunks at the start of every movement and thuds when it stops. It is the sound you notice in a budget hotel room when the blackout blind drops. In a bedroom timed to open before you wake, that difference is the whole point of paying more.

The Dubai heat problem the generic guides skip

Every buying guide written for a European window misses the thing that matters most here, which is what 45-degree glass does to a battery motor. A lithium cell should only be charged between 0 and 45 degrees, and sustained heat above that shortens its life (Battery University, 2026).

On a west or south-facing window in a Dubai summer, the pocket of air trapped against the glass can climb toward that ceiling through the afternoon. A battery retrofit motor left to charge in that heat degrades faster and can throttle itself. Dust makes it worse, the same fine grit that works into any exposed mechanism during sandstorm season.

The fix is simple once you know the mechanism. Charge the motor off the window, running the USB-C cable to a shaded socket, or hardwire the motors on your hottest elevations and keep battery units for the shaded rooms. Where the battery charges is the single choice that decides how long that motor lasts, and it is the one we flag on every west-facing window.

What the mechanism tells you to actually buy

Once you understand the parts, the buying decision gets short. If you rent or you are doing one or two windows, a retrofit chain-drive motor on your existing blind is the honest answer, charged off the glass. If you own or you are fitting out, an integrated tubular motor sized to each shade, hardwired on the hot windows, is worth it and disappears into the wall.

What you should not do is overspend on the wrong axis. A tiny bathroom blind does not need a premium electronic-limit motor, and a three-metre living-room shade must not be handed a bedroom-sized motor to save a few hundred dirhams. One thing clients always ask is whether the expensive motor is worth it, and the answer depends entirely on the size of the shade and how often the window bakes.

If you want the full picture on battery versus hardwired versus solar power for these motors, we broke that decision down separately in our guide to which blind motor fits your apartment. And once you know the mechanism, the next question is which windows are even worth automating first.

Frequently Asked Questions

Can you make existing roller blinds smart without replacing them?

Yes. A retrofit motor like the Aqara Roller Shade Driver E1 or a SwitchBot equivalent clamps onto the bead chain your blind already has and pulls it for you. It screws to the wall beside the window, needs no wiring, and comes off cleanly when you move, which makes it the standard choice for renters in Dubai.

How long does a motorized blind motor last?

A quality tubular motor sized correctly for its shade lasts well over a decade of daily use. The common early failures are not age, they are a motor with too little torque for a heavy blind, or a battery unit left charging against hot glass. Match the motor to the shade and keep it out of direct heat and it outlasts the fabric.

Are motorized blinds noisy?

A good one is not. A quality tubular motor runs around 47 decibels, quieter than a normal conversation, because it uses smoother gears and eases its speed instead of snapping. Cheap motors clunk and thud because they skip that easing. If a blind will open in a bedroom before you wake, the quiet motor is worth the difference.

Do motorized blinds work without WiFi?

The motor itself runs on a radio remote or wall switch and does not need the internet to move. WiFi or a hub only comes in when you want app control, schedules, or the blind to respond to the sun automatically. So a power cut or a dropped connection does not leave you unable to open the blind.
