Putting Your Dubai Villa's Pool Pump on a Smart Switch

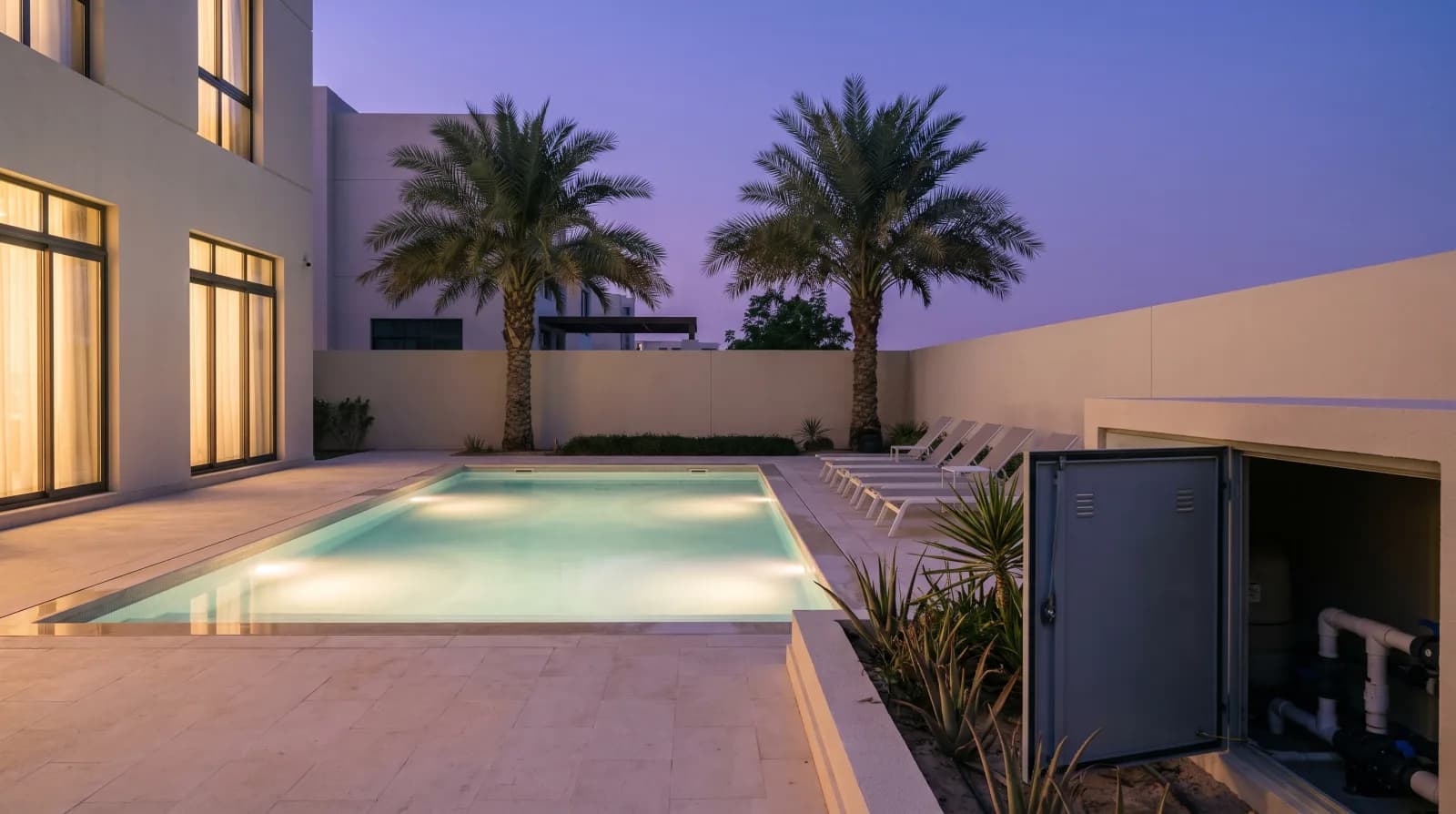

In many Dubai villas the pool pump sits in a small room behind the garden wall, on a timer the pool company set the week the house was handed over. It clicks on at the same hour every day, summer or winter, and nobody in the house has touched the dial since.

Smart pool pump control sounds like the easiest job in the house: a smart relay, a schedule, done. But the choice of switch decides whether the pump still switches off a year from now, and the pool light has to be switched somewhere else entirely.

TL;DR: A smart relay can run a pool pump, but a pump is a motor, and switching a motor directly is hard on a small relay's contacts. The right setup is a smart relay driving a motor-rated contactor, with a snubber (a small part that soaks up the switch-off spike) fitted at the load. Variable-speed pumps carry their own clock. The pool light switches at its transformer.

What Your Pool Pump Is Doing All Day

A pool pump pushes the water through the filter, and the pool needs a minimum amount of that every day whatever your schedule says. The Pacific Northwest National Laboratory's Building America guide puts it plainly: "A turnover every 24 hours is the minimum needed filtration flow rate for the pool pump", meaning the full volume of the pool through the filter once a day. Fall short and "the risk of algae and pathogens can increase" (PNNL Building America).

The same guide describes the traditional single-speed pump as a "1- or 2-horsepower motor that will run at least five to six hours per day, if not around the clock", and says a typical 1.5-horsepower pump "draws about 2,000 watts". That is roughly an electric kettle, left on for hours every day.

Trimming a pump below that daily turnover saves a little electricity and buys you a cloudy pool and a service call. What a smart home can do is move the hours you already run to when they suit the house, and tell you the pump ran.

How a Single-Speed Pool Pump Gets Switched

On a single-speed pump there is nothing to talk to. The motor runs at one speed whenever it has power, which is why PNNL notes that most of these pumps are "electrically powered through a timer or automation system to schedule their daily operation". The old dial timer in your pump room is doing exactly that: cutting and restoring the mains to the motor.

A smart version does the same job with a switch your phone can reach. It is a close cousin of putting a villa gate on your phone, but on a gate the relay only presses a button on the gate's own controller. A single-speed pool pump has no controller to press, so whatever you fit switches the motor itself.

Why a 16-Amp Smart Relay Needs Help With a Pump

A 16-amp smart relay has the current for a typical pool pump and still should not switch the motor directly. A common smart relay, the Shelly 1PM Gen3, lists a "Max. switching current: 16A" (Shelly Knowledge Base), and a 2,000-watt pump works out to roughly 9 amps on a villa supply. As with the rating on a smart plug, that number answers only part of the question.

The other part is the kind of load. Shelly's spec sheet sorts supported loads into resistive, capacitive and "Inductive with RC Snubber", and its snubber guide lists "Other devices with electrical motors" among the loads that need one (Shelly RC Snubber). Its support team explains why: "Inductive loads, such as motors, transformers, fans and solenoids, generate a back electromotive force (EMF) when current through them is interrupted" (Shelly Support). Every time the pump stops, that spike lands on the relay.

Starting is hard on the relay too. Shelly calls the failure a "sticking relay", where the contacts "remain closed even after an OFF command is sent", and it lists "Motors and pumps" among the loads that commonly cause it (Shelly Support). A stuck relay on a lamp is an annoyance, but on a pool pump it leaves a motor your app can no longer turn off, running until someone walks out to the breaker.

The Contactor and the Snubber

For larger loads Shelly points to a contactor, a heavier switch built for the job: "The Shelly device controls the coil of the contactor" and "The contactor switches the actual load". Contactors are rated by duty, and the one to ask for on a pump is AC3, the category for "all squirrel cage motors", with pumps named on the list (Electrical4u).

The snubber is the small part that goes with it. Shelly describes it as a resistor and a capacitor "connected in series" that "effectively mitigates voltage spikes that can occur during the switching of inductive loads" (Shelly RC Snubber). The contactor's own coil counts as an inductive load, and a step-by-step guide from a Shelly reseller lists the places to fit one as "the junction box of the motor, the fan or the contactor" (ShellyMadrid). Shelly's support page puts the position in capitals: "MAKE SURE THAT RC SNUBBER IS INSTALLED NEXT TO THE INDUCTIVE LOAD, NOT SHELLY DEVICE".

This came up on a job of ours this month. A villa client asked for a relay on his pool, and our message the evening before the visit said we carry 16-amp relays and asked whether that would do for his pump. By the morning of the visit we still did not know whether the thing on his pool line was the pump, a valve (either a coil or a small geared motor), or nothing electrical at all. Every electrical answer meant a contactor or a snubber, and we did not carry either. So the pool was left off that visit.

Where the Smart Relay Should Live

Put the smart relay indoors, in the villa's distribution board or a shaded, ventilated enclosure, with the contactor and the snubber at the pump end. Shelly rates the 1PM Gen3 for an "Ambient working temperature: -20 °C to 40 °C" and "Humidity: 30 % to 70 % RH", and a pump room beside a pool in a Dubai summer can pass both.

The split also keeps the pump room simple for whoever services it. The contactor is a standard part any electrician recognises, and the smart side can be swapped or upgraded later without touching the pump wiring.

Variable-Speed Pumps Already Have a Clock

A variable-speed pump schedules itself, so the smart home should talk to its control inputs or watch it, and leave its power alone. If your pump was replaced in the last few years, read its label before anyone wires anything. PNNL says a variable-speed pump "can reduce pool pump energy use by 50% to 90%", and that "Newer variable-speed pumps have the time clock and scheduling feature inherent in their control system."

Pentair's owner's manual for its SuperFlo VS range shows what that looks like in practice. Its feature list includes an "Onboard time of day schedule" and "24hr. clock retention for power outages", and with Pentair's wiring kits "the pump can be externally controlled by digital input signals" (Pentair SuperFlo VS manual).

PNNL's install advice for these pumps goes a step further: "it is preferable to wire them directly, bypassing the existing time clock", so that "the pump has a continuous uninterrupted power supply". If your pump is an old single-speed unit, replacing it will change more than any switch, and we would say so before we quote a clever relay for a motor that should be retired.

Watching the Pump Instead of Switching It

Often the most useful thing is to know what the pump is doing. An energy meter on the pump circuit shows when it started, how long it ran, and whether it ran at all today. With an alert set, a pump that did not start shows up that day rather than when the water turns cloudy. That turns a silent machine behind a wall into a line on your phone, and it is the first thing we would fit on any villa pool, before anything that switches.

Monitoring also shows whether the timing is right. Our Al Barari garden guide covers the scheduling side: a pump that runs through the same hours the AC is working hardest is a timing problem, fixed with a schedule change and no new equipment.

One caution from Pentair's manual that a smart setup should respect: install the controls at the equipment pad so the user "does not place any portion of his/her body over or near the pump strainer lid, filter lid or valve closures". The app sits on top of a manual control at the pump, and that control stays where it is. And tell your pool company when the timer changes, because they will look for the old dial on their next visit.

The Pool Light Switches at the Transformer

Nothing smart goes near the water. The control for an underwater pool light switches the mains side of its transformer, back in the panel. The reason is the low-voltage rule for pools: the British wiring rules, BS 7671 Section 702, say that in the pool itself "only Separated Extra Low Voltage (SELV) supplies with a voltage not exceeding 12 V AC RMS or 30 V ripple-free DC should be used", that the source "must be located outside of Zones 0, 1 and 2", and that switchgear "cannot be installed in Zone 0" (NAPIT via Professional Electrician). Your electrician will work to DEWA's own regulations, so read that as the reason for the layout rather than the rulebook for your pool.

On a proposal for a larger villa earlier this year, we specced the pool light switched at its existing breaker circuit, leaving the fixture in the pool untouched. Transformers are on Shelly's inductive list too, so the snubber rule applies here as well. Switched that way, the pool light can join the rest of your outdoor lighting in an evening scene.

Frequently Asked Questions

Will a 16A smart relay handle my pool pump?

It has the current, since a typical 1.5-horsepower pump draws about 2,000 watts. On its own it is the wrong switch, because Shelly lists motors and pumps among the loads that commonly weld a relay's contacts shut. Ask for the smart relay to drive an AC3-rated contactor, with an RC snubber (a small part that absorbs the switch-off spike) fitted at the load.

Can I control a variable-speed pool pump from my phone?

Yes, through the pump's own controls. Variable-speed pumps run their own schedule, and PNNL advises wiring them for continuous power, so a smart home should connect through the pump's control inputs or simply monitor its energy use from the panel.

How many hours a day should a pool pump run in Dubai?

It depends on your pool's volume and your pump's flow rate, so ask your pool company for the number. The floor is one full turnover of the water through the filter every 24 hours. A smart schedule moves those hours around the day and keeps the total above that floor.

Can my pool light go on a smart switch?

Yes. Underwater pool lights run on low voltage from a transformer kept away from the water, so the smart control switches the transformer's mains side in the panel, with a snubber, because a transformer is an inductive load.

Where to Start

If you only do one thing, put an energy meter on the pump circuit and watch it for a month. You will know what the pump does, and whether the next step is a schedule, a contactor, or a new pump.

When you bring in an electrician, or us, three questions cover most of it: is the pump single-speed or variable-speed, will the smart relay drive an AC3 contactor instead of the motor, and where will the relay and the snubber be mounted. The answers fit into the same whole-home setup as the lights and the AC.

Tell us about your pump and pool light, and we will tell you what the switching side needs before anyone opens the panel.
